Imaging Radar & Package

RETINA-4SN Developer Kit

RETINA-4SN

Make Your Own AI Imaging Radar

retina-4sn process image retina-4sn process image

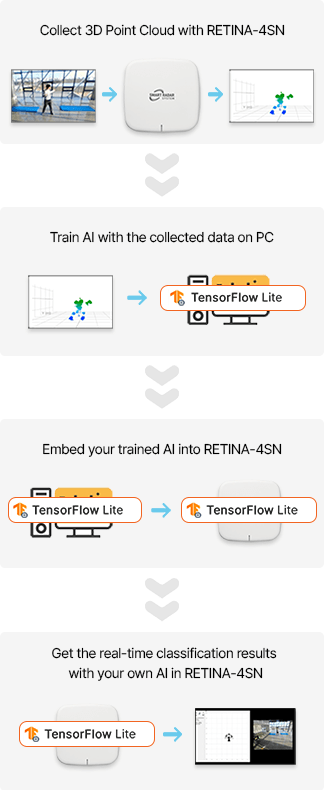

  • Collect
    3D Point Cloud with RETINA-4SN

  • Train AI
    with the collected data on PC

  • Embed your
    trained AI into RETINA-4SN

  • Get the real-time classification
    results with your own AI
    in RETINA-4SN

Product features

  • Experience AI from A to Z with SRS AI Kit

    - Data Collection - Labelling - Modeling - Validation - AI Embedding - Real-time Results

  • Bundled Packages

    - RETINA-4SN 1 Set - 2 Free Training Courses - Certificates for the Courses - User Guides - Example Codes for Embedding - RETINA Viewer - ROS/RVIZ Interface Modules

Features

  • Built-in AI Engine
  • Fall Detection & Prediction
  • Presence Detection
  • People Count
  • Movement Tracking

How to purchase

Product Specifications

Parameter / Specifications

  • Product Name

    RETINA-4SN

  • Type

    4D Imaging Radar

  • Frequency

    77 ~ 81 GHz

  • Detection range / area

    12m(Person) / 7m X 7m

  • Azimuth Angle FoV

    90°(±45°)

  • Elevation Angle FoV

    90°(±45°)

  • Update Rate

    50ms

  • Comm. Interface

    Wi-Fi

  • Main Power supply

    Typ. 12V

  • Operating Temperature

    -30℃ ~ +65℃

  • IP Rating

    IP43

  • Dimension (mm)

    130 x 130 x 33.8

  • Weight (g)

    580
